Summer of 2020 home projects



To keep busy during Covid-19 distancing during the summer of 2020, I decided to do several small home projects including:

  • Installing a new electric attic hoist, aluminum attic ladder, a bridge across the attic, and new LED attic lighting
  • Painting the great room ceiling, small bedroom walls and ceiling, master bedroom walls. (Kathy helped and painted the main bathroom walls and ceiling.)
  • Remodeled master bathroom vanity area
  • Did a partial remodel of a ½ bathroom
  • Designed (including permit documents for submission) and built a 155 sq. ft. addition to replace the master bedroom closet that was removed to expand the master bathroom vanity area


Remodeling the master bathroom vanity area including:

  • Removal of a small closet and vanity countertop
  • Installing new drywall
  • Raising the cherry vanity 6” using cherry plywood
  • Installing a new quartz countertop
  • Removing a large mirror, having it cut in half and edges cleaned up and reinstalling rotated 90 degrees
  • installing new vanity light about 12" higher
  • installing new isolation valves, faucets, flex connections and drain piping
  • Painting walls and ceiling
  • Installing new vinyl plank flooring
  • Building two new drawers for vanity to take advantage of the 6" increase in height
  • Pre-wiring for new closet addition
  • Using left over materials to
    • raise the cherry vanity in the ½ bath by 6”
    • build a new small cherry cabinet with a vertical pullout and quartz countertop in the master bath

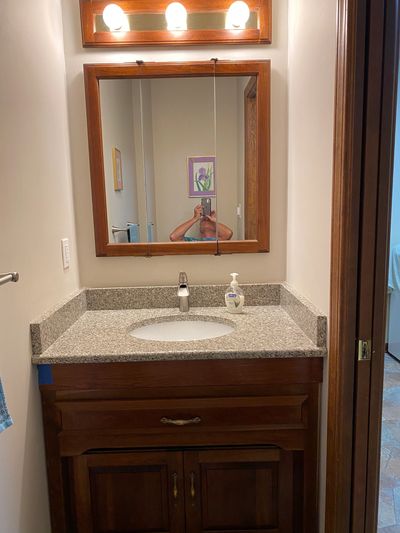

1/2 Bath cherry vanity raised by 6" allowing a new cherry drawer to be added. New quartz countertop

1/2 Bath cherry vanity raised by 6" allowing a new cherry drawer to be added. New quartz countertop.


Phase 1 - Small Master Closet removal & vanity area enhancement

Small closet and vanity countertop removed

    Phase 2 - Master Bedroom Closet Addition

      Metrics and Credits

      The heavy stuff....

      4,000 lbs concrete unloaded, mixed and poured on site for footings

      2,000 lbs of #4 and 4,000 lbs of #8 driveway gravel placed around form-a-drain for drainage.

      12,000 lbs of concrete pumped for foundation walls

      Broke up and moved about 3000 lbs of concrete from wash-out

      6,000 lbs of pea gravel for crawl space

      6,000 lbs of topsoil spread


      Spent $83/ sq. ft. so far and should come in under $90.

      The big ticket items were renting the excavator for a week (it was a lot of fun and used it for some other jobs around the yard) and pumping in concrete for foundation wall.


      From submission of application for permit to completion of exterior including 5 normal building inspections was 80 days.


      Thanks to my wife, Chris, Dan, and Jason who helped,

      Kathy helped a lot.  She spread a lot of dirt, moved a lot of stone and bags of concrete, installed some rebar chairs, ties, and still plate bolts, installed some metal ceiling joist ties installation, helped with Tyvek installation, installed all the Styrofoam, and helped with painting. She also did a lot of the assembly of the cement mixer.  My biking buddy Chris helped with excavation, spreading dirt, floor decking, wall framing, rafters, and breaking up concrete washout.  Dan (a neighbor) helped with hip roof rafters and OSB sheathing installation. (Even north of 70, he was cat-like on the ceiling joists.) My next door neighbor, Jason helped with lifting and fastening the 77 lb reinforced concrete siding Hardie panels as well as some footing and foundation wall rebar tying.

      Back to top of page

      Winter of 2020-2021 projects - Pantry

      Original pantry

        Other winter of 2020-2021 projects

        Small built-in TV stand

          40th Wedding Anniversary Present for my Wife

            New walk-in shower
